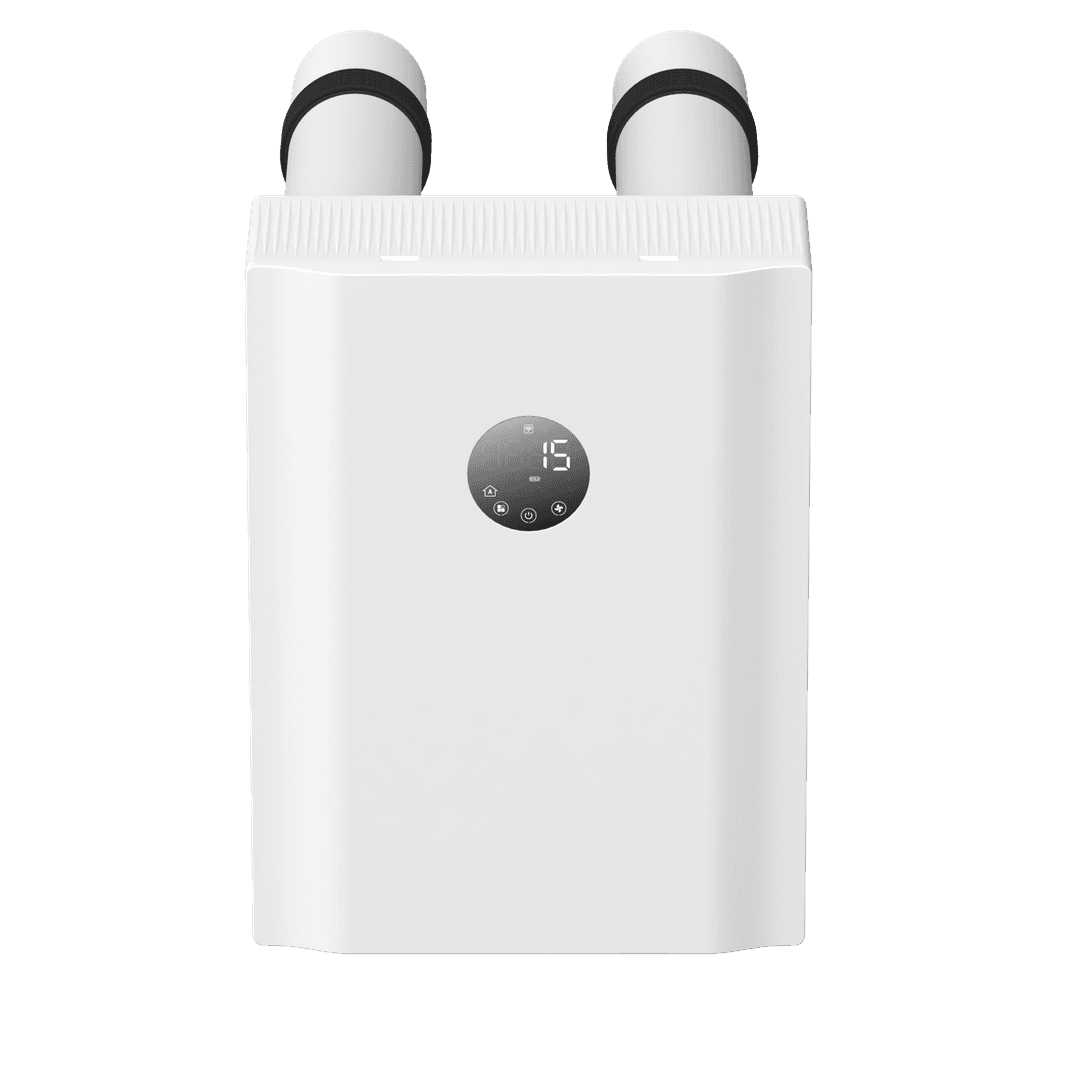

Air Duo
Continuous balanced ventilation with a counter-flow enthalpy exchanger
The Air Duo V1.0 is a dual-channel energy recovery ventilator for indoor single-room applications. It extracts stale air and supplies fresh air at the same time through two Ø120–130 mm wall openings, recovering 75–90% of the heat with a counter-flow enthalpy exchanger. Airflow 40 (sleep) / 60 / 80 / 100 m³/h. Not for bathrooms or utility rooms.

Technical specifications
Heat Recovery
75–90% (counter-flow enthalpy)
Noise Level
31/33/34/35 dB(A) @1.5 m
Airflow
40 (sleep) / 60 / 80 / 100 m³/h
Wall Openings
2 × Ø120–130 mm · duct length 260–400 mm
Power Consumption
Max. 28 W
Dimensions / Weight
567 × 437 × 196 mm · 11 kg · IPX2
Connectivity
WiFi (standard) / Din Ventilation app
Certifications
CE, ErP, RoHS
Key features
Dual-channel design supplies and extracts air at the same time
75–90% heat recovery with a counter-flow enthalpy exchanger
WiFi as standard with the Din Ventilation app
Infrared remote control available as an option
Washable pre-filter + F7 filter included, H10/H13 optional
Four airflow levels: 40 (sleep) / 60 / 80 / 100 m³/h
Indoor installation only — not for bathrooms or utility rooms

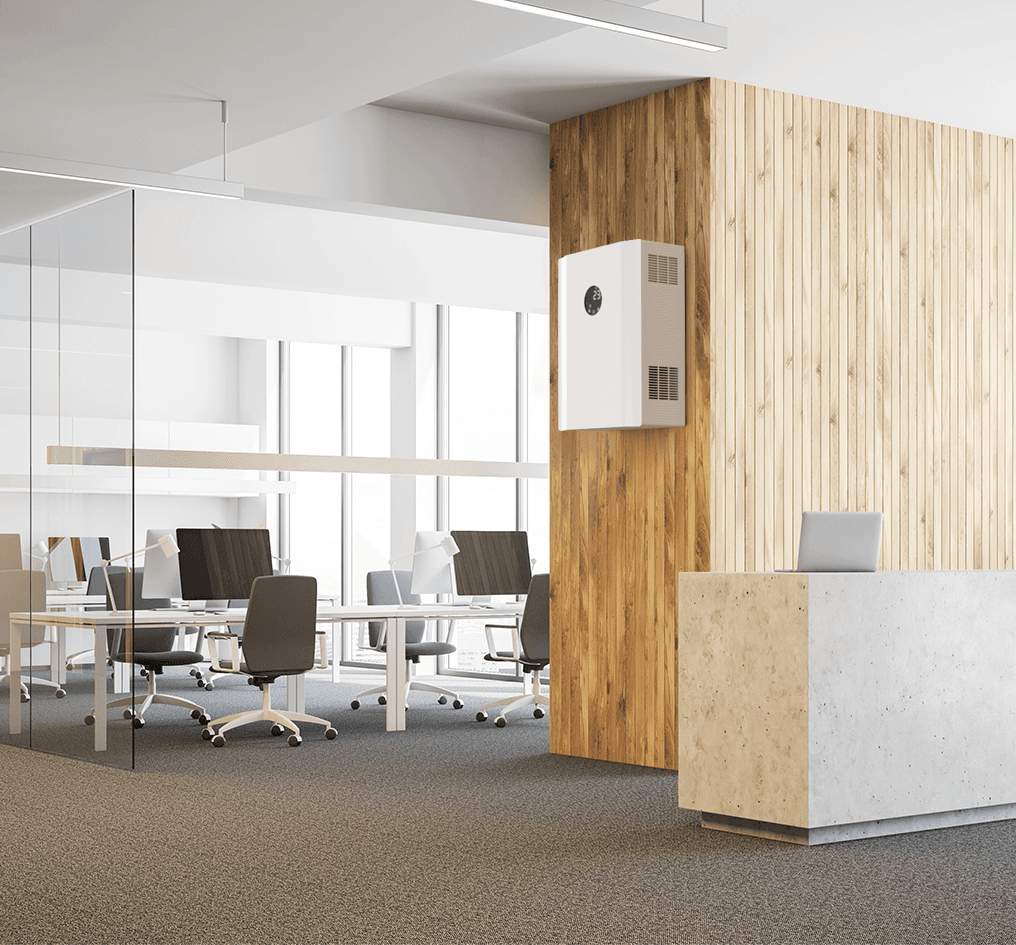

Ideal applications
- Living rooms and open-plan living areas
- Bedrooms
- Offices and meeting rooms
- Hotel rooms
- Apartments
