Single-Room ERV

Air Mini (Air Pro Mini)

High-performance ventilation for thin walls — up to 90% heat recovery from just 150 mm wall thickness

The Air Mini (Air Pro Mini) delivers up to 90% heat recovery and is engineered for thin-wall construction. With a duct length of just 150–250 mm, it fits walls as thin as 150 mm and suits rooms up to 30 m². It runs without a filter — the heat exchanger is simply cleaned 2–4 times a year. Available in white and black front panels with optional metal or plastic outer hoods to match any facade.

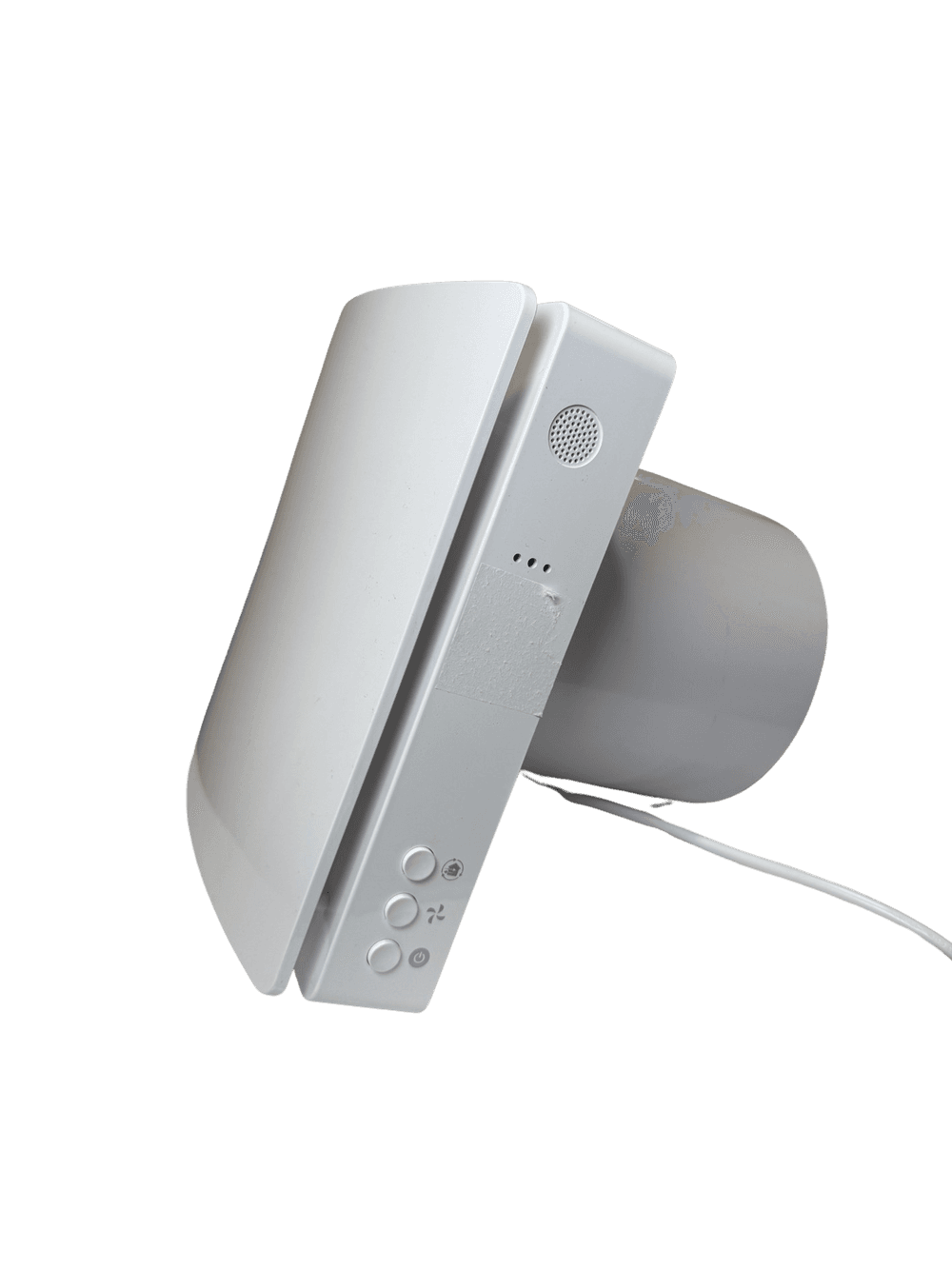

Air Mini (Air Pro Mini)

Technical specifications

Airflow

60/70/80 m³/h

Duct / Core Hole

Ø158 mm duct · Ø170 mm hole

Heat Recovery

Up to 90% (73/81/90%)

Noise Level

32/34/39 dB(A) @1.5 m

Wall Thickness

150–250 mm

Room Size

Up to 30 m²

Filter

None — exchanger cleaned 2–4× a year

Power Consumption

Up to 12.1 W

Weight

4.3 kg

Certifications

CE, ErP, IPX4

Key features

1

Designed for thin walls from just 150 mm thickness

2

Up to 90% heat recovery with ball regenerator technology

3

CO₂ and humidity sensors optional

4

Wireless pairing for balanced multi-room ventilation

5

Free cooling bypass function

6

Available in white and black front panel finishes

7

Multiple outer hood options — plastic or painted metal

8

WiFi as standard with the Din Ventilation app

Ideal applications

  • Thin-wall new builds
  • Lightweight construction
  • Prefabricated buildings
  • Renovations with limited wall depth
  • Extensions and conservatories
Air Mini (Air Pro Mini) in application

Interested in the Air Mini (Air Pro Mini)?

Get in touch for pricing, technical support, or to become a certified dealer.
