Single-Room ERV

Air Nano

Compact ventilation for tight spaces — Ø105 mm duct in a Ø120 mm core hole for small rooms

The Air Nano is our most compact energy recovery ventilator, designed for rooms where a standard Ø162–172 mm core drill is not possible. With a Ø105 mm duct in just a Ø120 mm core hole, it fits walls of 270–500 mm while still delivering up to 97% heat recovery efficiency. WiFi as standard (Din Ventilation app), humidity control, and wireless pairing make it a full-featured solution in the smallest possible footprint.

Air Nano

Technical specifications

Airflow

10/20/25 m³/h · boost 30 m³/h

Duct / Core Hole

Ø105 mm duct · Ø120 mm hole

Heat Recovery

Up to 97% (76/86/97% on speeds 1/2/3)

Noise Level

16.9/22.7/26.8 dB(A) @1.5 m

Wall Thickness

270–500 mm

Power Consumption

4/4.9/6 W

Weight

2.9 kg

Certifications

CE, ErP, CB, RoHS

Key features

1

Smallest duct diameter (Ø105 mm, Ø120 mm core hole) for tight spaces

2

Up to 97% heat recovery with ceramic ball regenerator

3

WiFi as standard with the Din Ventilation app

4

Wireless pairing for balanced ventilation between rooms

5

Humidity control as standard

6

Auto shutter prevents backdrafting when unit is off

7

Silent operation at 16.9–26.8 dB(A) @1.5 m — ideal for bedrooms

8

Infrared remote control included, coarse filter included (F7 optional)

Ideal applications

  • Small bedrooms
  • Bathrooms
  • Home offices
  • Thin-wall constructions
  • Renovation projects with limited wall depth
  • Holiday homes and cabins

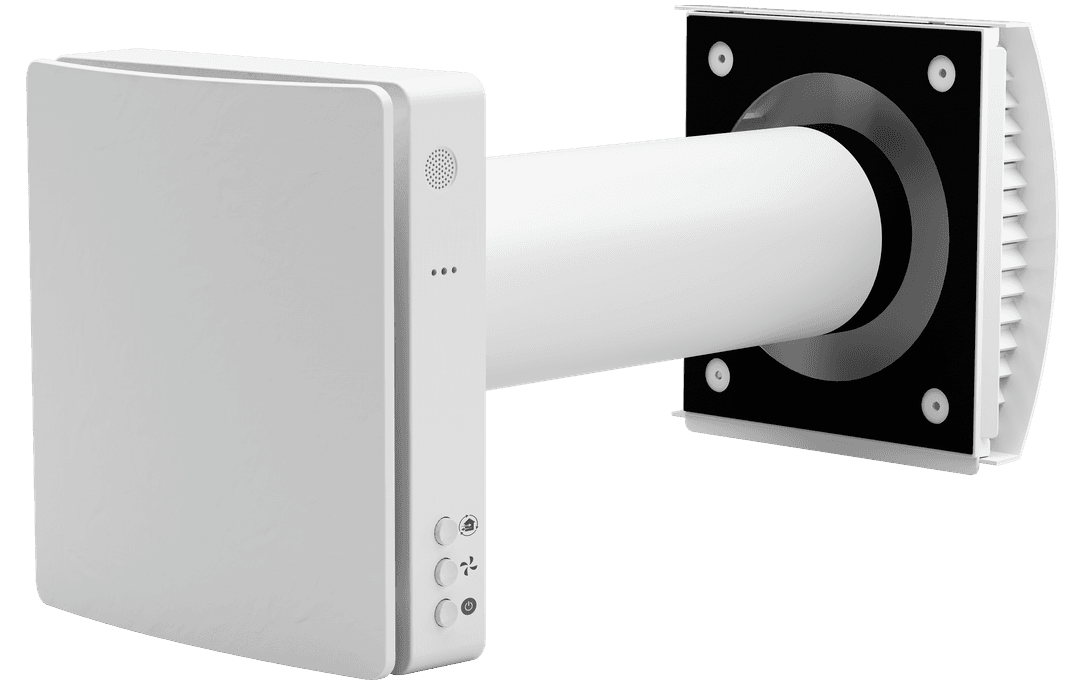

Air Nano in application
