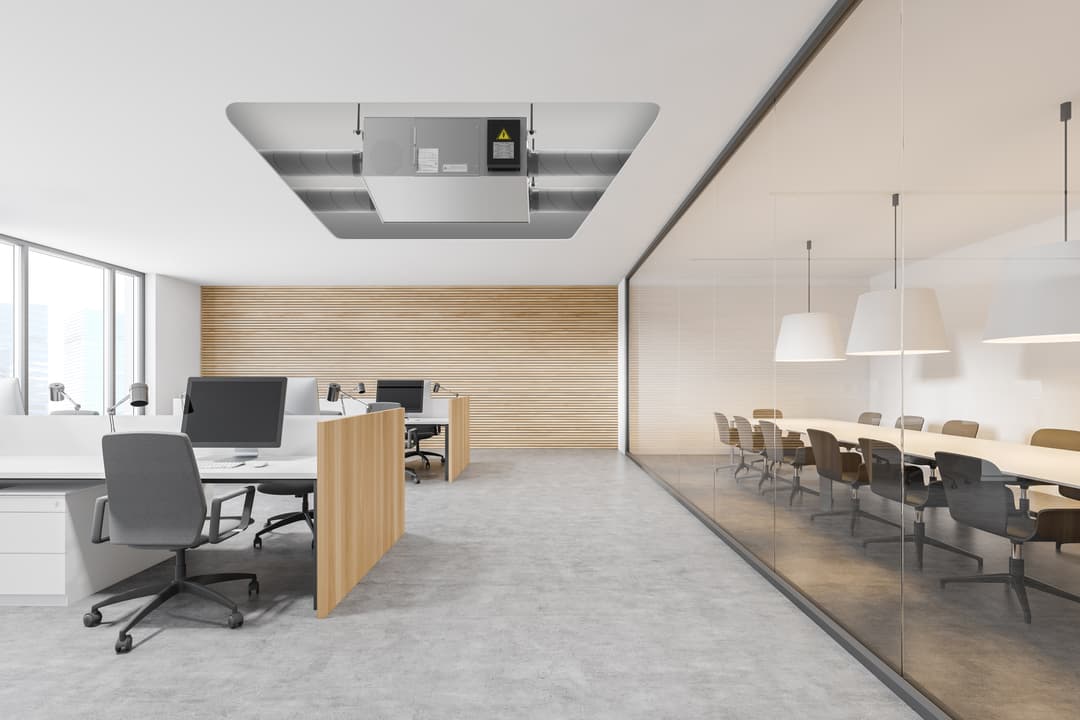

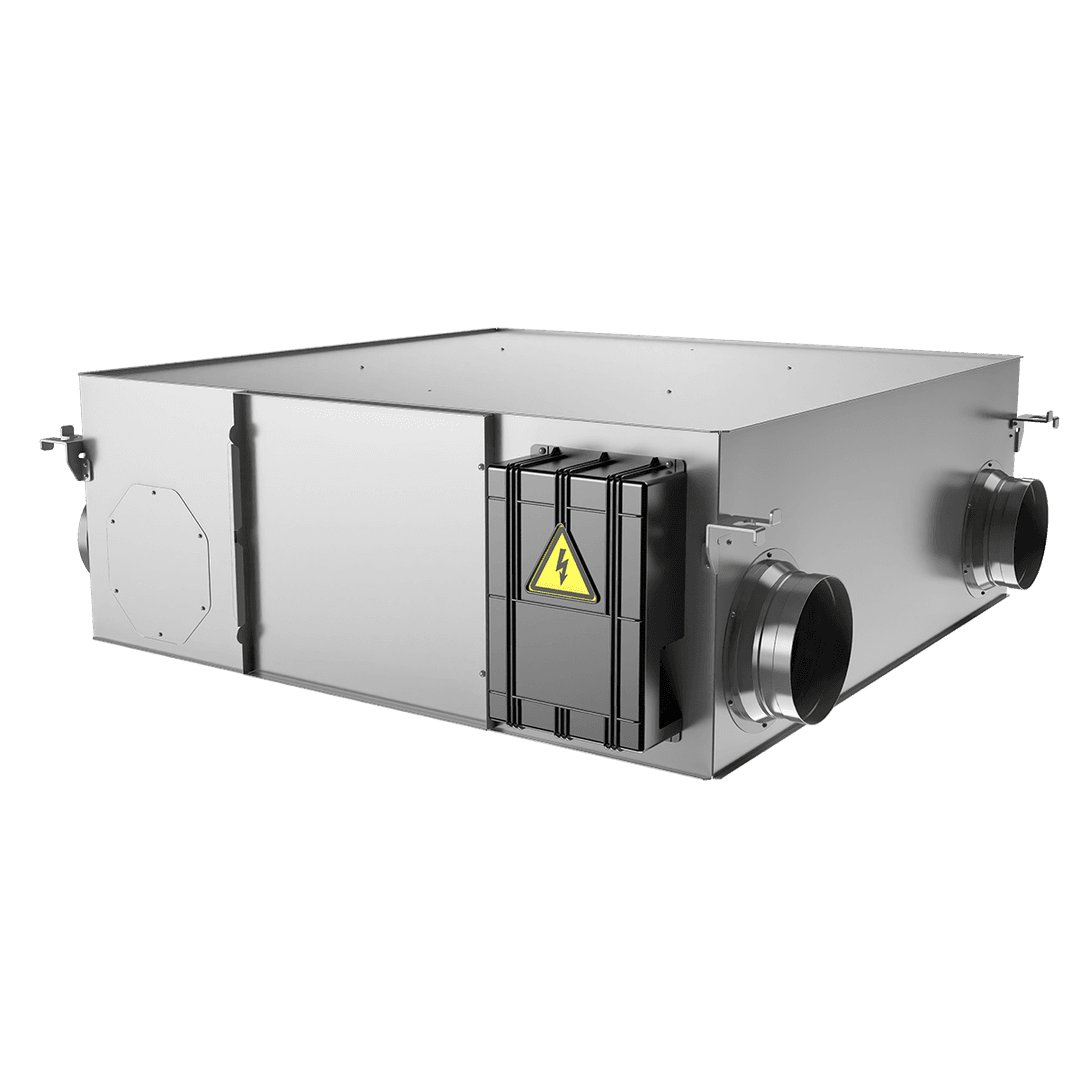

AirCeil 150–2000
Ceiling-mounted energy recovery for commercial and institutional buildings — 150 to 2,000 m³/h
The AirCeil series is a ceiling-mounted energy recovery ventilator available in nine sizes from 150 to 2,000 m³/h. Featuring 5th generation enthalpy heat exchangers, plastic-encapsulated DC fans, and intelligent WiFi/IoT control, it delivers efficient ventilation for offices, retail, restaurants, schools, and healthcare facilities. The compact ceiling-mount design saves valuable floor and wall space.
Technical specifications
Airflow
150–2,000 m³/h
Heat Recovery
73–90%
Noise Level
28–40 dB(A)
Installation
Ceiling-mounted
Sizes
9 models available
Power Consumption
58–850 W
Connectivity
WiFi, IoT
Certifications
CE, ErP 2018, CSA
Key features
Nine sizes from 150 to 2,000 m³/h to match any commercial space
5th generation enthalpy heat exchanger with antibacterial high-polymer membrane
Plastic-encapsulated brushless DC fans save up to 40% energy vs traditional motors
Automatic bypass for free cooling when outdoor conditions are favourable
New EPS inner structure with occlusal edge sealing for superior insulation
Optional SA/EA air direction configuration for flexible duct routing
High external static pressure for long duct runs in commercial buildings
WiFi and IoT connectivity with intelligent control system
Ideal applications
- Offices and co-working spaces
- Retail shops and showrooms
- Restaurants and hospitality
- Schools and educational buildings
- Healthcare facilities
- Hotels and serviced apartments
